SIIG 1-port PCI Express Parallel Adapter Item # 3412378
Share
-
Email This Page
- Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
-
Share this Item
Close
Print
3412378
was removed.
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Description

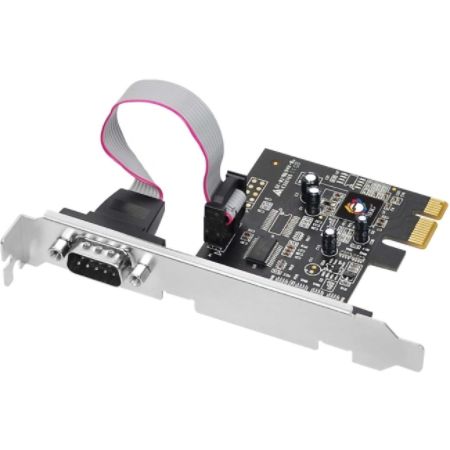

SIIG's DP 1-port RS232 Serial PCIe with 16950 UART is designed to add one 9-pin RS232 serial port your PCI Express enabled desktop computer. This PCI Express serial adapter features one high-speed 16950 UART serial port with 128-byte FIFO buffer to support data transfer rates up to 230Kb/s. Additionally, this dual profile serial adapter works in PCI Express slots of different lane widths and with the included spare low-profile bracket, the adapter can be installed into either standard height or low profile system chassis. It is the smart and cost effective solution to add one RS232 serial port for additional serial port device connections.The DP 1-port RS232 Serial PCIe with 16950 UART is fully compliant with PCI Express Base Specification, Revision 1.1, is FCC, and CE approved, and is RoHS compliant. It is fully compatible with a wide variety of Windows operating systems.
Product Details
| Item # | 3412378 |
| OfficeMax # | 23587575 |
| Manufacturer # | LE2455 |
| maximum data transfer rate | Up to 230 kbit/s |
| height | 2.9 in. |
| thickness | 710 mil |
| quantity | 1 |
| width | 4.8 in. |
| package contents | 1-port PCI Express Serial Adapter; Spare low profile bracket; Driver CD; User's Manual |
| Product Name | 1-port PCI Express Serial Adapter |
| manufacturer | SIIG, Inc |
| Host Interface | PCI Express |
| weight | 2 oz |
| brand name | SIIG INC |
| Card Height | Dual-profile |
| UART Type | 16950 |
| Package Type | OEM |
| Number of Serial Ports (External) | 1 |
| Platform Supported | PC |
| form factor | Plug-in Card |
| warranty length | 2-year limited |
| model name | JJ-E01111-S1 |
| Show More ▾ |
